Introduction

Feed Pellet Machine is widely used by people who breed animals or people who are engaging in feed pellet production line for business. It can make pelleted feed for chicken, rabbit, cow, sheep, cattle, pig, rabbits, and so on.

The reason why they make feed pellets is that pellets are a balanced combination of different kinds of nutrition for the better growth of livestock, poultry and other animals.

And the feed pellet machines in LIMA are divided into the flat die feed pellet machine and the ring die feed pellet machine.

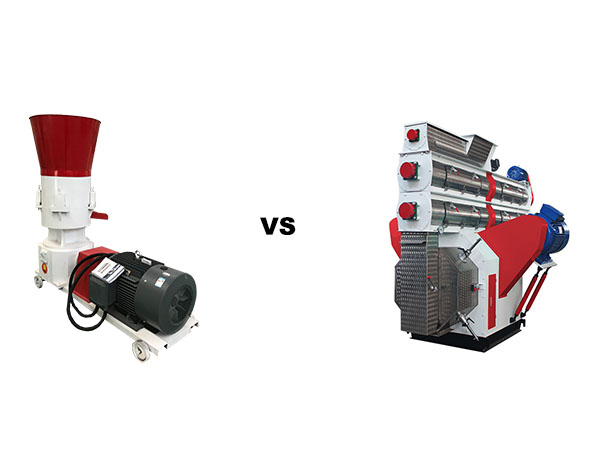

ring die and flat die feed pellet machines

Advantages

Advantages of the Feed Pellet Machine

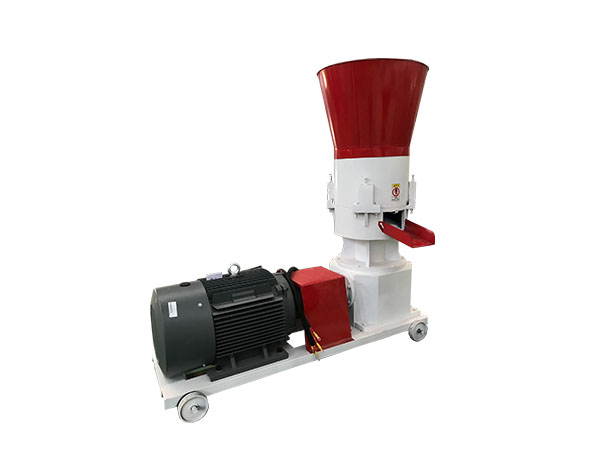

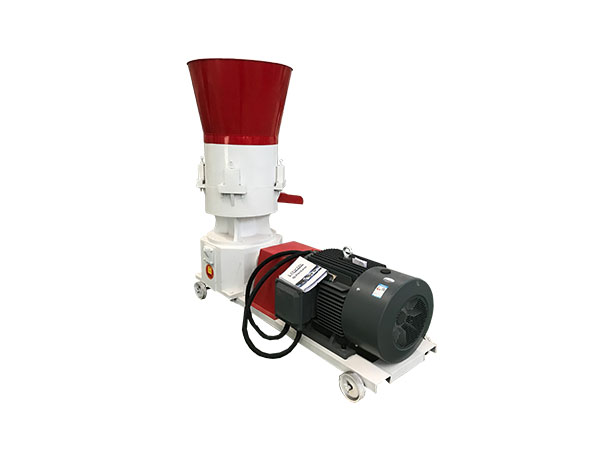

Flat die feed pellet mill is small scale feed pellet machine that is designed for small scale feed pellet production.

The flat die feed pellet machine can be adjusted into different size through different models of die diameters.

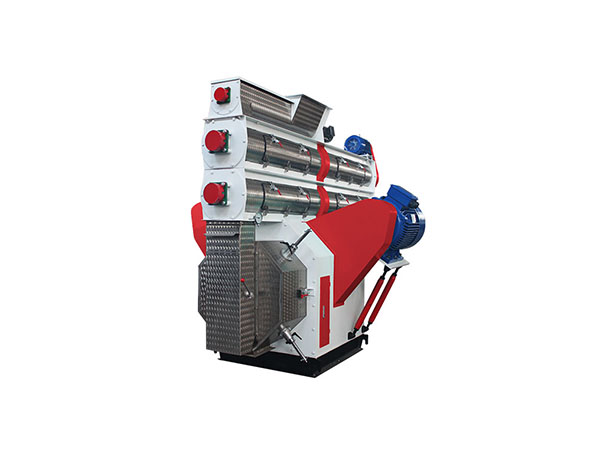

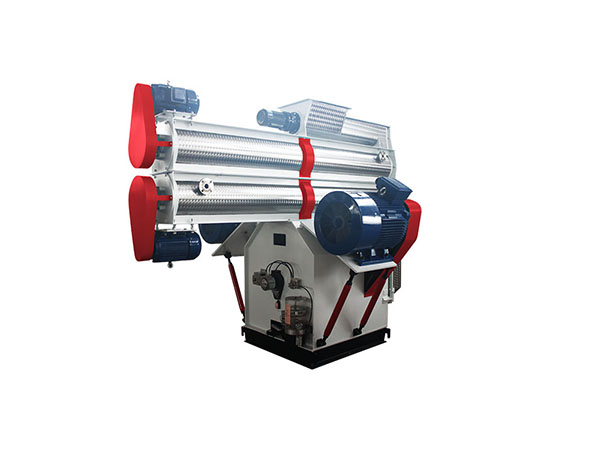

This ring die feed pellet mill is mainly consist of feeding device (screw feeder), hardening and tempering device (conditioner), face plate.

Beside, the ring die machine also need press chamber transmission system, overload protection and electrical control system.

Application

The feed pellet machine can also make feeds for animals such as chicken, cattle, pig, sheep etc, from raw material sorghum, maize, soya meal, rice and wheat etc.

If you don't know which one fits your needs most, please contact us directly. Our professional engineers will details more information for your references.

Parameter

Model	Capacity(kg/H)	Pressure roller(pcs)	Power(kw)	Weight(Kg)	Dimension（cm）
FZP-125	80-100	2	4	75	803052
FZP-150	90-150	2	4	80	833057
FZP-210	200-300	2	7.5	160	12004070
FZP-230	350-450	3	11	230	11804573
FZP-260	400-500	3	18.5	260	1224586
FZP-300	500-700	4	22	350	1505595
FZP-400	900-1000	4	30	680	15255112
FZP-500	1200-1500	4	45	1000	16485158

Model	Capacity	Voltage	Power(KW)	dimension(mm)
SZLH250	1-2T	380V	11/22	225814511366
SZLH320	2-4T	380V	37	230015001850
SZLH350	2-6T	380V	55	240012002200
SZLH400	3-8T	380V	90	260012502300
SZLH420	4-12T	380V	110	310012502400
SZLH508	4-18T	380V	132	310013002550
