Introduction

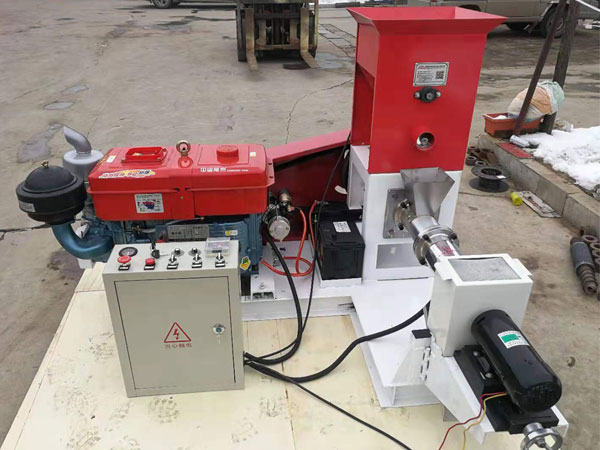

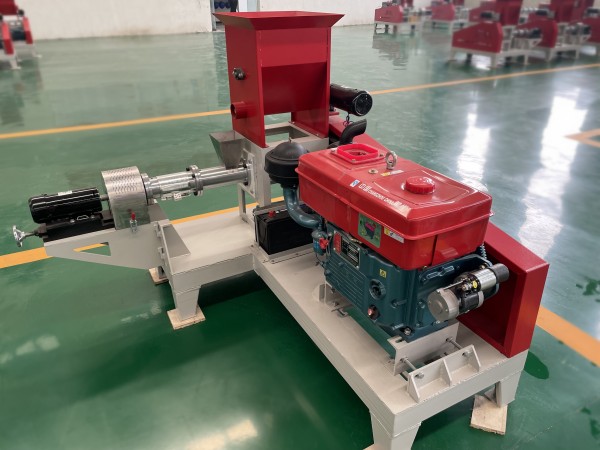

Diesel Engine Floating Fish Feed Pellet Machine is widely used for producing variety materials into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The final products have unique shape and good taste, high nutrition and smooth textures. For feeds of fish and shrimp, the floating time in water can be adjusted by the extrusion degree adjustment. This dry type floating fish feed machine is an ideal for small and medium fish farm holders or feed processing plant.

Features

Features of Diesel Engine Floating Fish Feed Pellet Making Machine

This type of fish feed pellet machine widely used for making feedstuff for all kinds of fish.

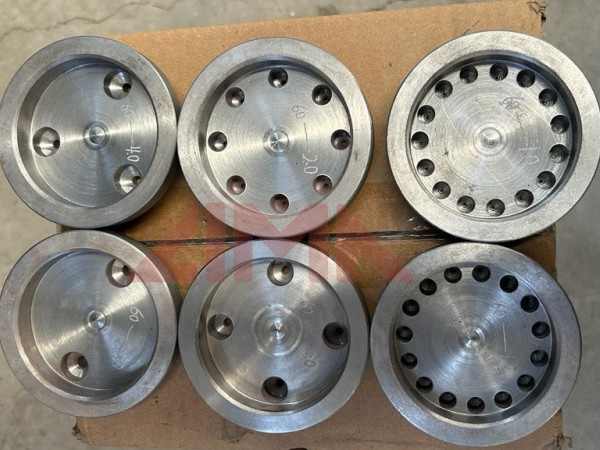

We can get the different size and length of pellet diameter ( diameter from 0.8mm to 12mm).

The pellet can floating on the water over 12 hours, no have any pollution to the water and the fish.

We have different scales, the capacity from 50kgs to 2tons (this is a production line) per hour.

Advantage

Requirement of Raw Material

Type: Flour, corn starch, rice bran, meat meal, bone meal, fish meal, etc.

Size: about 60-80 mesh which were crushed and well mixed.

Moisture content: about 20%-25%

Starch content: ≥30%

Usages of Final Pellets

Aquatic feed pellets: fish, shrimp, frog, etc.

Pet feed pellets: dog, cat, rabbit, chicken, goose, duck, pig, etc.

Parameter

Technical Data
Model	Capacity	Main power	Feeding power	Screw diameter	Cutter power	Pellet size
DGP50	60-80kg	11kw	0.4kw	Φ50mm	0.4kw	0.8-12mm
DGP60	100-150kg	15kw	0.4kw	φ60mm	0.4kw	0.8-12mm
DGP70	180-250kg	18.5kw	0.4kw	φ70mm	0.4kw	0.8-12mm
DGP80	300-350kg	22kw	0.4kw	φ80mm	0.6kw	0.8-12mm
DGP90	400-450kg	37kw	1.1kw	φ90mm	0.6kw	0.8-12mm
DGP120	500-700kg	55kw	1.1kw	φ120mm	1.5kw	0.8-12mm
DGP135	800-1000kg	75kw	1.1kw	φ133mm	2.2kw	0.8-12mm
DGP160	1200-1500kg	90kw	1.5kw	φ155mm	2.2kw	0.8-12mm
DGP200	1800-2000kg	132kw	1.5kw	φ195mm	3.0kw	0.8-12mm

Inquiry
